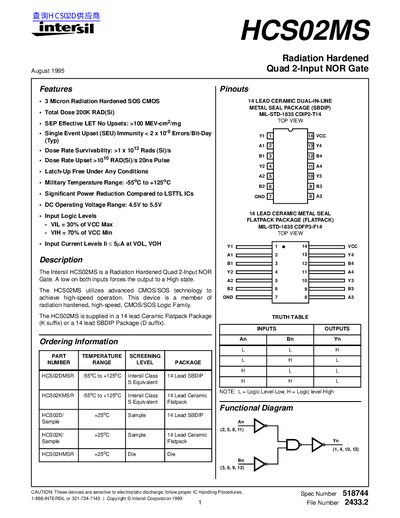

HCS02MS is a radiation hardened quad 2-input NOR gate from Intersil Corporation. A low on both inputs forces the output to a High state. The HCS02MS utilizes advanced CMOS/SOS technology to achieve excellent radiation hardness and can operate in harsh environments such as high temperature, high voltage and strong electromagnetic fields.
The Intersil HCS02MS is a radiation-hardened quad 2-input NOR gate utilizing advanced CMOS/SOS technology. It is designed for high-speed operation and features a total dose rating of 200K RAD(Si) with single event upset immunity. The device is available in 14-lead Ceramic Flatpack (K suffix) or 14-lead SBDIP (D suffix) packages.
| Total Dose | 200K RAD(Si) |
|---|---|
| Single Event Upset Immunity | >100 MEV-cm²/mg |
| Dose Rate Survivability | >1 x 10⁶ Rads (Si)/s |
| Latch-Up Free | Under Any Conditions |
| Military Temperature Range | -55°C to +125°C |
| DC Operating Voltage Range | 4.5V to 5.5V |
| Quiescent Current (Icc) | -10 pA to -200 µA |
| Output Current (Sink) | -4.0 mA to -4.8 mA |
| Output Current (Source) | -4.0 mA to -4.8 mA |
The device has a total dose rating of 200K RAD(Si).
Yes, the device is latch-up free under any conditions.
The military temperature range is -55°C to +125°C.
