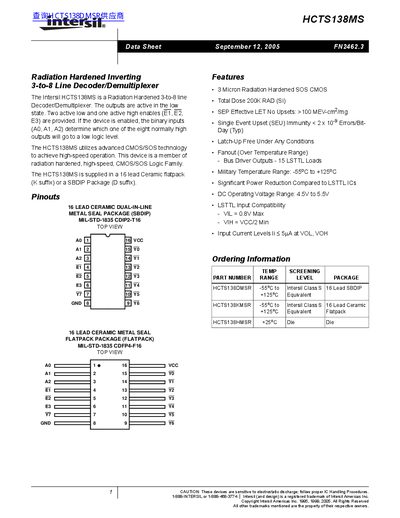

The HCTS138MS is an Intersil radiation hardened 3-to-8 line decoder/demultiplexer. Outputs are active in the low state. Two active low and one active high enables (E1, E2, E3) are provided. If the device is enabled, the binary inputs (A0, A1, A2) determine which one of the eight normally high outputs will go to a low logic level. The HCTS138MS utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of radiation hardened, high-speed, CMOS/SOS Logic Family. The HCTS138MS is supplied in a 16 lead Ceramic flatpack (K suffix) or a SBDIP Package (D suffix).
The Intersil HCTS138MS is a Radiation Hardened 3-to-8 line Decoder/Demultiplexer utilizing advanced CMOS/SOS technology. It features two active low and one active high enables, allowing binary inputs to determine which of the eight normally high outputs will go to a low logic level when enabled.
The device is supplied in a 16 lead Ceramic flatpack (K suffix) or a SBDIP Package (D suffix). Key radiation hardening specifications include a Total Dose rating of 200K RAD (Si), Single Event Upset immunity, and latch-up free operation under any conditions. It operates over a military temperature range of -55°C to +125°C.
| Technology | 3 Micron Radiation Hardened SOS CMOS |
|---|---|
| Total Dose Rating | 200K RAD (Si) |
| SEU Immunity | >100 MEV-cm2/mg |
| Latch-Up Status | Free Under Any Conditions |
| Fanout (Over Temperature Range) | 15 LSTTL Loads |
| Military Temperature Range | -55°C to +125°C |
| DC Operating Voltage Range | 4.5V to 5.5V |
| Input Low Voltage (Max) | 0.8V |
| Output Current (Sink) at +125°C | -6.0 mA |
The device is supplied in a 16 lead Ceramic flatpack (K suffix) or a SBDIP Package (D suffix).
Yes, the device is latch-up free under any conditions.
