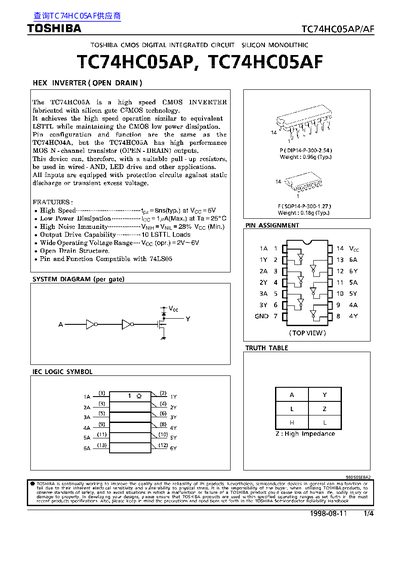

The document describes the TC74HC05AP and TC74HC05AF as high-speed CMOS inverters fabricated with silicon gate C2MOS technology. These devices feature open-drain outputs compatible with 74LS05, allowing for wired-AND logic applications when used with suitable pull-up resistors.
| Operating Voltage Range | 2V ~ 6V |
|---|---|
| Propagation Delay Time (Typ) | 8ns at Voc = 5V |
| Power Dissipation (Max) | 14uA at Ta = 25°C |
| Output Drive Capability | +10 LSTTL Loads |
The recommended operating temperature range is -40°C to 85°C.
Yes, the pin and function are compatible with the 74LS05.
