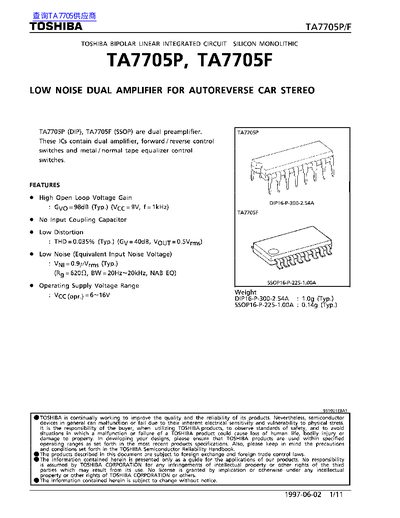

Toshiba TA7705P/TA7705F Bipolar Linear Integrated Circuit Datasheet

Brand: Toshiba
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 11
File format: PDF
File size: 415 KB
Published: 08 June, 2012
Updated: 08 June, 2012
MD5 checksum: 4A2431D048F20555EFE2CEA9F2B32A0E
PDF: Toshiba TA7705P/TA7705F Bipolar Linear Integrated Circuit Datasheet PDF

About this manual

The Toshiba TA7705P (DIP) and TA7705F (SSOP) are bipolar linear integrated circuits functioning as dual preamplifiers. These devices feature forward/reverse control switches and metal/normal tape equalizer control switches, specifically designed for use in car stereo systems.

What's inside

Features
Application Information
Forward / Reverse select switch
Equalizer control switch
Maximum Ratings
Electrical Characteristics
Test Circuit
Outline Drawing

Specifications

Total Harmonic Distortion	0.035% (Typ.)
Equivalent Input Noise Voltage	90.924Vrms (Typ.)
Operating Supply Voltage Range	6 to 16 V
Maximum Output Voltage	2.0 Vrms

Frequently asked questions

What is the typical quiescent current?

The typical quiescent current ranges from 60 to 90 mA depending on the equalizer setting.

What are the operating temperature limits?

The device operates between -30°C and +75°C.
