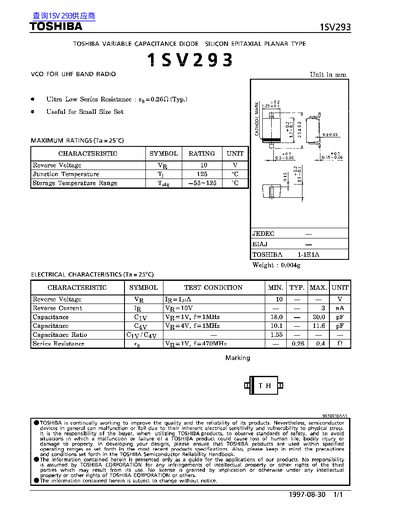

The document describes the Toshiba 1SV293, a silicon epitaxial planar type variable capacitance diode intended for use in VCOs within the UHF band. Key features include ultra-low series resistance (typical 0.262 ohms) and suitability for small-size sets.
The datasheet lists maximum ratings such as a reverse voltage of 10V and a junction temperature of 125°C, along with specific electrical characteristics including capacitance values at various voltages and frequencies.
| Reverse Voltage (VR) | 10 V |
|---|---|
| Junction Temperature (Tj) | 125 °C |
| Storage Temperature Range (Tstg) | -55~125 °C |
| Series Resistance (rg) | 0.262 ohms (Typ.) |
The typical series resistance (rg) is 0.262 ohms.
Yes, it is described as a VCO for the UHF band radio.
