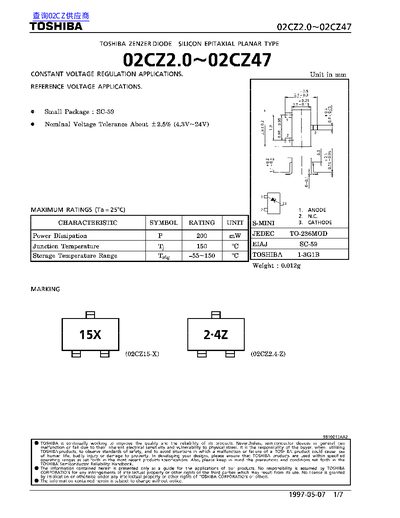

This document is a technical datasheet for the TOSHIBA 02CZ series of Silicon Epitaxial Planar Type Zener Diodes. The product line includes constant voltage regulation applications with nominal voltages ranging from 2.0V to 47V.
The datasheet provides maximum ratings, electrical characteristics tables, zener voltage classification data for various test currents (0.5mA, 1mA, and 5mA), and graphical curves illustrating forward current-voltage relationships, thermal resistance, and temperature coefficients.
| Maximum Power Dissipation | 200 mW |
|---|---|
| Maximum Junction Temperature | 150 °C |
| Storage Temperature Range | -55~150 °C |
| Voltage Range | 2.0V to 47V |
The nominal voltage tolerance is about +2.5%.
The maximum junction temperature rating is 150 °C.
The SC-59 package measures 100x80x1.6mm.
