1SV328 is a capacitor diode produced by Toshiba. It features high capacitance ratio and low series resistance, and is suitable for small-sized tuners.

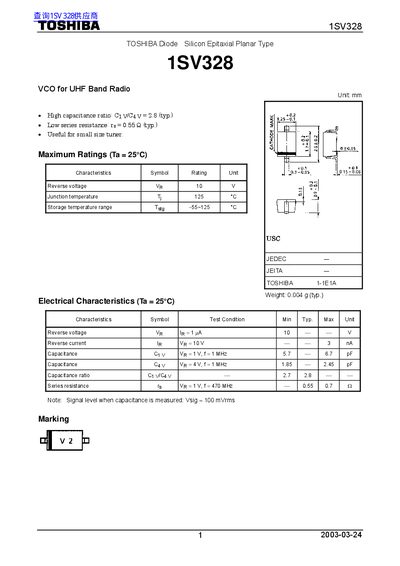

This document is a datasheet for the Toshiba 1SV328, a silicon epitaxial planar type diode designed as a Voltage Controlled Oscillator (VCO) for use in the UHF band. The device features a high capacitance ratio and low series resistance, making it suitable for small size tuners.
| Reverse voltage (VR) | 10 V |
|---|---|
| Junction temperature (Tj) | 125 °C |
| Storage temperature range (Tstg) | -55~125 °C |
| Weight | 0.004 g (typ.) |
| Capacitance ratio C1v/C4 V | 2.8 (typ.) |
| Series resistance rs | 0.55 Ω (typ.) |
The typical capacitance ratio C1v/C4 V is 2.8.
The maximum rated reverse voltage VR is 10 V at Ta = 25°C.
