The TB6066FNG is a shock sensor IC produced by Toshiba. The chip operates from 2.7 to 5.5 volts DC and outputs a low-level signal. The chip has good signal-to-noise ratio and can be used in mechanical control systems such as servo control.

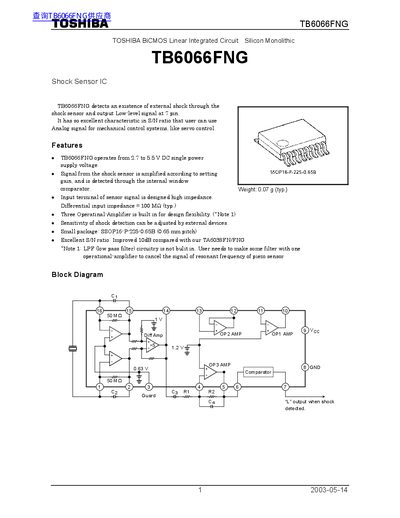

The document describes the Toshiba TB6066FNG, a BiCMOS linear integrated circuit designed to detect external shock via a connected sensor. It features an internal window comparator that outputs a low-level signal at Pin 7 when a shock is detected, making it suitable for mechanical control systems like servo control.
| Power supply voltage (Operating) | 2.7 to 5.5 V DC |
|---|---|
| Differential input impedance | 100 MΩ (typ.) |
| Operating temperature range | -25 to 85 °C |
| Storage temperature range | -55 to 150 °C |
The output becomes Low-level.
No, LPF circuitry is not built in and must be designed by the user.
