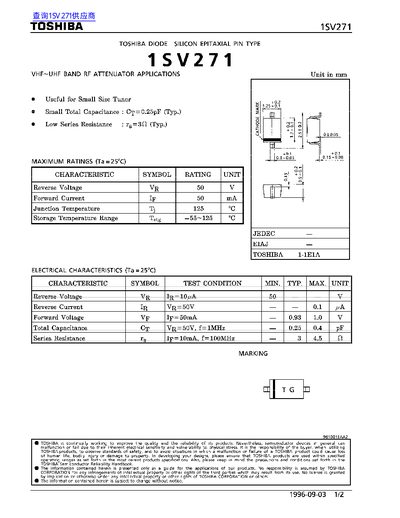

This document is a technical datasheet for the Toshiba 1SV271, a Silicon Epitaxial PIN Type diode designed for use in VHF and UHF band RF attenuators. The device features low series resistance and small total capacitance, making it suitable for small size tuners.
| Reverse Voltage | 50 V |
|---|---|
| Forward Current | 50 mA |
| Junction Temperature | 125 °C |
| Total Capacitance (Typ.) | 0.25 pF |
| Series Resistance (Typ.) | 30 Ω |
It is a VHF-UHF band RF attenuator useful for small size tuners.
The maximum reverse voltage rating is 50 V.
