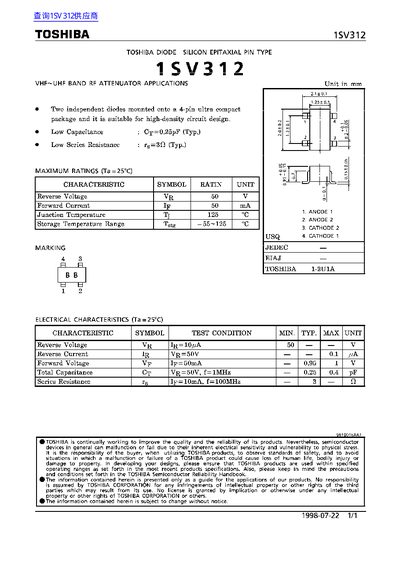

The document describes the Toshiba 1SV31248 AUS, which consists of two independent diodes mounted in a 4-pin ultra-compact package suitable for high-density circuit design. Key features include low capacitance (Typ. 0.25pF) and low series resistance (Typ. 8Ω).
| Reverse Voltage | 50 V |
|---|---|
| Forward Current | 50 mA |
| Junction Temperature | 125 °C |
| Storage Temperature Range | -55~125 °C |
| Total Capacitance (Typ.) | 0.25 pF |
| Series Resistance (Typ.) | 8 Ω |
It is a silicon epitaxial PIN type diode.
The maximum reverse voltage is 50 V.
The typical forward current rating is 50 mA.
