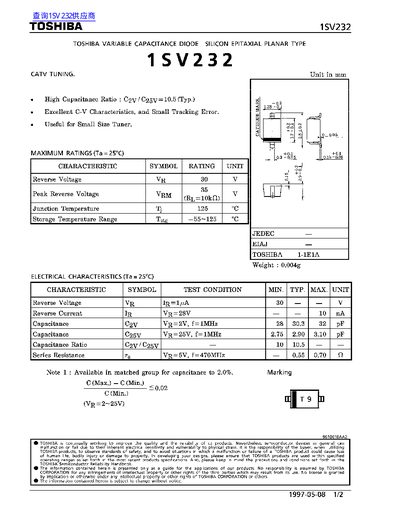

This document is a technical datasheet for the TOSHIBA 1SV232, a silicon epitaxial planar type variable capacitance diode. The device is designed for applications such as CATV tuning due to its excellent C-V characteristics and small tracking error.
The datasheet provides maximum ratings including a reverse voltage of 30 V and a junction temperature of 125 °C. It also lists detailed electrical characteristics, specifying capacitance values at various voltages and frequencies, along with series resistance.
| Reverse Voltage (VR) | 30 V |
|---|---|
| Junction Temperature (Tj) | 125 °C |
| Storage Temperature Range (Tstg) | -55~125 °C |
| Capacitance Ratio (Coy / Cosy) | 10.5 (Typ.) |
| Series Resistance (Rg) | 0.70 Ω Max. |
The maximum reverse voltage rating is 30 V.
The typical capacitance ratio is 10.5.
The maximum junction temperature is 125 °C.
