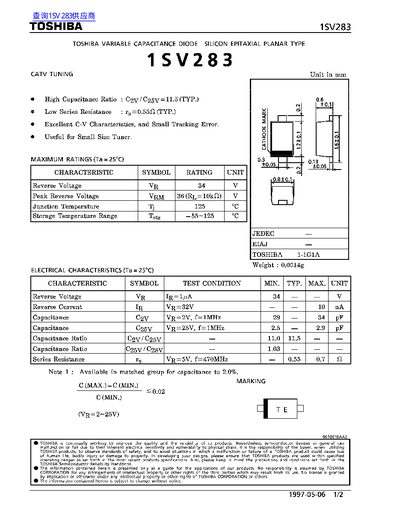

This document is a technical datasheet for the Toshiba 1SV283, a silicon epitaxial planar type variable capacitance diode designed for use in CATV tuning units. The device features an excellent C-V characteristic with a typical high capacitance ratio of 11.5 and low series resistance.
| Reverse Voltage (VR) | 34 V |
|---|---|
| Peak Reverse Voltage (VRM) | 86 V |
| Junction Temperature (Tj) | 125 °C |
| Storage Temperature Range (Tstg) | -55~125 °C |
| Typical High Capacitance Ratio (Coy /Cosy) | 11.5 |
| Typical Low Series Resistance (rg) | 0.55 Ohm |
The device has a maximum reverse voltage rating of 34 V.
The typical capacitance ratio (Coy / Cosy) is 11.5.
The maximum rated junction temperature is 125 °C.
