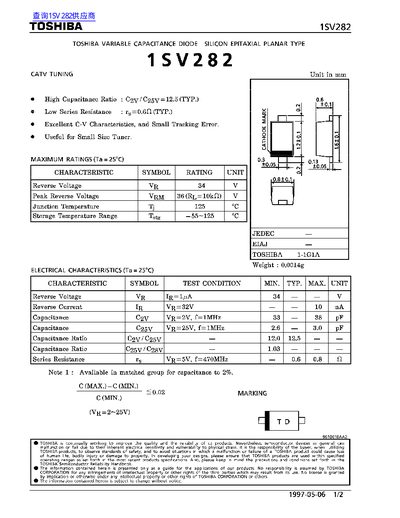

This document is a technical datasheet for the TOSHIBA 1SV282, a silicon epitaxial planar type variable capacitance diode. The device is designed for use in CATV tuning units and offers excellent C-V characteristics with small tracking error.
The datasheet provides maximum ratings including reverse voltage of 34 V and junction temperature of 125 °C. It also lists detailed electrical characteristics such as capacitance values at specific voltages, capacitance ratio, and series resistance.
| Reverse Voltage (VR) | 34 V |
|---|---|
| Peak Reverse Voltage (VRM) | 86 V |
| Junction Temperature (Tj) | 125 °C |
| Storage Temperature Range (Tstg) | -55~125 °C |
| Capacitance Ratio (Co / Coss) | 12.5 (TYP.) |
| Series Resistance (rg) | 0.6~0.8 Ω |
The typical capacitance ratio (Co / Coss) is 12.5.
The maximum reverse voltage rating is 34 V.
