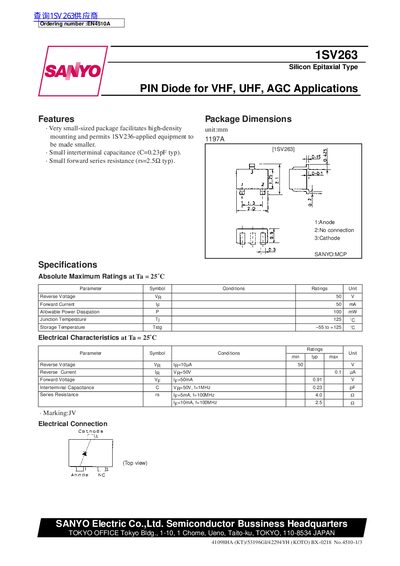

This document describes the features and characteristics of the 1SV263 PIN diode from SANYO Electric Co., Ltd., including its small size, low capacitance, and low forward series resistance.
The document describes the SANYO 1SV263, a silicon epitaxial type PIN diode designed for VHF, UHF, and AGC applications. It features a very small-sized package that facilitates high-density mounting and allows equipment to be made smaller. The device also boasts small interterminal capacitance (0.23pF typical) and low forward series resistance. This manual is written in Japanese.
| Forward Current | 50 mA |
|---|---|
| Allowable Power Dissipation | 100 mW |
| Junction Temperature | 125 C |
| Storage Temperature | -55 to +125 C |
| Reverse Current | 0.1 mA |
| Forward Voltage | 0.91 V |
| Interterminal Capacitance | 0.23 pF |
The device is designed for VHF, UHF, and AGC applications.
The absolute maximum rating for power dissipation is 100 mW.
The typical interterminal capacitance is 0.23 pF.
