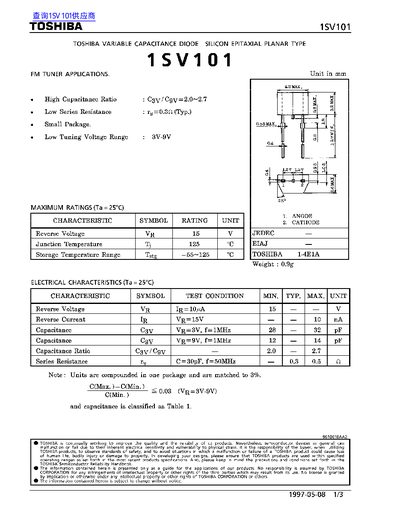

This document is a technical datasheet for the Toshiba 18V101, a silicon epitaxial planar type variable capacitance diode designed specifically for FM tuner applications. The device features a high capacitance ratio ranging from 2.0 to 2.7 and a low series resistance of approximately 0.3 ohms typical.
| Junction Temperature (Tj) | 125 °C |
|---|---|
| Storage Temperature Range (Tstg) | -55~125 °C |
| Capacitance Ratio (Cav / Coy) | 2.0 ~ 2.7 |
| Tuning Voltage Range | 8V-9V |
The device provides a high capacitance ratio ranging from 2.0 to 2.7.
The device has a maximum reverse voltage rating of 15 V.
The typical series resistance is 0.3 ohms under those conditions.
The capacitance ratio ranges from 2.0 to 2.7.
