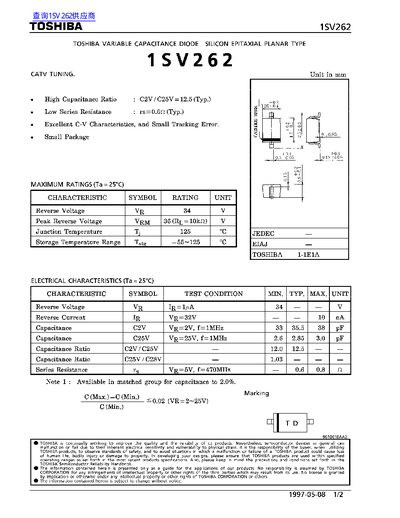

This document is a technical datasheet for the TOSHIBA 1SV262, a silicon epitaxial planar type variable capacitance diode. It is designed primarily for CATV tuning applications.
The datasheet provides detailed specifications including maximum ratings such as reverse voltage and junction temperature, along with electrical characteristics like capacitance at various voltages and series resistance.
| Reverse Voltage (VR) | 34 V |
|---|---|
| Peak Reverse Voltage (VRM) | 36 V |
| Junction Temperature (Tj) | 125 °C |
| Storage Temperature Range (Tstg) | -55~125 °C |
| Capacitance at 2V (Typ.) | 35.5 pF |
| Capacitance at 25V (Typ.) | 2.85 pF |
| Series Resistance (Typ.) | 0.6 Ω |
The typical capacitance ratio C2V/C25V is 12.5.
The maximum rated junction temperature is 125 °C.
