FS5KM-9 is a N-channel power MOSFET from Mitsubishi Electric. It has a maximum on-resistance of 1.4 ohms, a rated current of 5 amps, and an isolation voltage of 2000 volts. The device is suitable for use in switching power supplies, DC-DC converters, battery chargers, printers, copiers, HDDs, FDDs, televisions, VCRs, and personal computers.

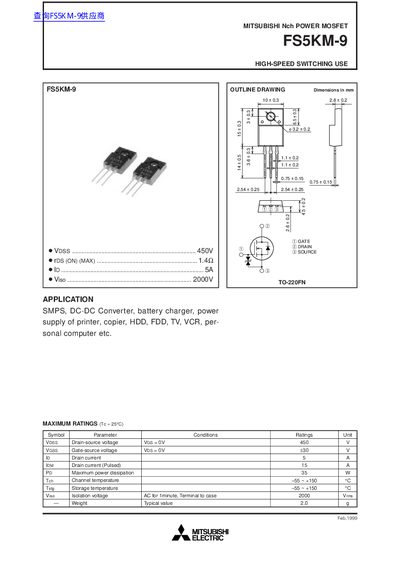

This document is a technical datasheet for the Mitsubishi FS5KM-9 N-channel Power MOSFET. It provides comprehensive specifications including maximum ratings such as drain-source voltage (450V), gate-source voltage (±20V), and drain current (5A). The device features an outline drawing of the TO-220 package with precise dimensions in millimeters.
| Drain-source voltage (VDSS) | 450V |
|---|---|
| Isolation voltage (Viso) | 2000V |
| Package type | TO-220F |
It is suitable for use in SMPS, DC-DC converters, battery chargers, and power supplies for printers, copiers, HDDs, FDDs, TVs, VCRs, and personal computers.
The maximum power dissipation (PD) at a case temperature of 25°C is 35W.
