FS5VS-6 is a high-performance Nch power MOSFET produced by Mitsubishi Electric. It has a maximum voltage rating of 300V and a typical on-resistance of 1.6 ohms, making it ideal for use in a variety of switch-mode power supplies, DC-DC converters, battery chargers and other applications.

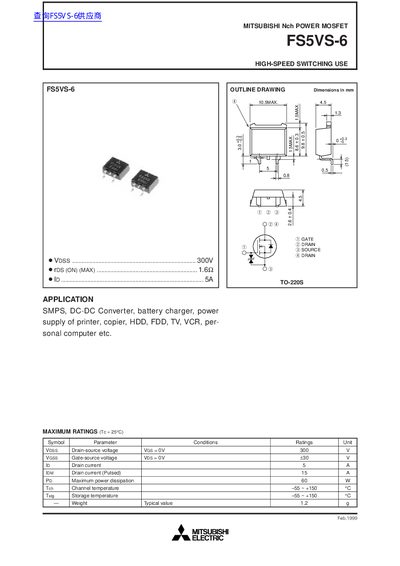

This document is a technical datasheet for the Mitsubishi Electric FS5VS-6, an N-channel Power MOSFET intended for high-speed switching uses. The device features a TO-220S package and is suitable for applications such as SMPS, DC-DC converters, battery chargers, and power supplies in printers, copiers, HDDs, FDDs, TVs, VCRs, and personal computers.
The datasheet provides maximum ratings, electrical characteristics, performance curves, and typical characteristic graphs. Key specifications include a drain-source voltage of 300V, a continuous drain current of 5A, and a pulsed drain current of 15A.
| Drain-source voltage (VDS) | 300 V |
|---|---|
| Gate-source voltage (VGs) | +30 V |
| Drain current (ID) | 5 A |
| Pulsed drain current (IDM) | 15 A |
| Maximum power dissipation (Pd) | 60 W |
| Channel temperature range | -55 ~ +150 °C |
| Package type | TO-220S |
It is used in SMPS, DC-DC converters, battery chargers, and power supplies for printers, copiers, HDDs, FDDs, TVs, VCRs, and personal computers.
The maximum pulsed drain current (IDM) is 15 A.
