The FS5VS-14A is a Nch power MOSFET manufactured by Mitsubishi Electric. It has a maximum on-resistance of 2.6 ohms, a maximum voltage of 700V, and a maximum current of 5A. This device is suitable for use in SMPS, DC-DC converters, battery chargers, printers, copiers, HDDs, FDDs, TVs, VCRs, and personal computers.

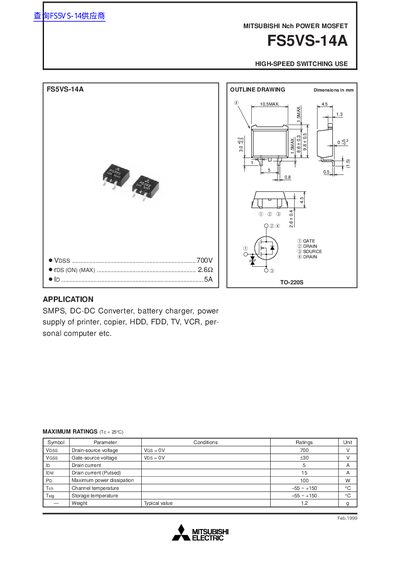

This document is a technical datasheet for the Mitsubishi Electric FS5VS-14A, an N-channel Power MOSFET designed specifically for high-speed switching applications. The device features a TO-220S package and is rated for a maximum drain-source voltage of 700V.
| Drain-source voltage | 700 V |
|---|---|
| Gate-source voltage | +30 V |
| Drain current (Continuous) | 5 A |
| Maximum power dissipation | 100 W |
| Channel temperature range | -55 ~ +150 °C |
It is suitable for SMPS, DC-DC converters, battery chargers, and power supplies for printers, copiers, HDDs, FDDs, TVs, VCRs, and personal computers.
The typical drain-source on-state resistance (rDS(ON)) is 2.0 Ohms when ID = 2A and VGS = 10V.
The typical turn-on delay time (td(on)) is 15 ns under test conditions of VD = 200V, ID = 2A, and VGS = 10V.
