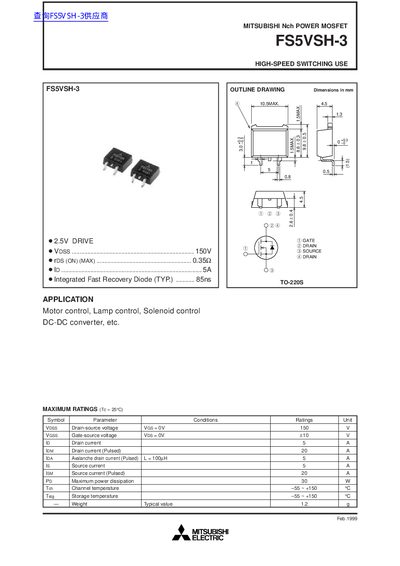

The document provides the outline dimensions and maximum ratings of MITSUBISHI Nch POWER MOSFET FS5VSH-3. This product is suitable for high-speed switching applications such as motor control, lamp control, solenoid control, and DC-DC converters.
This document is a technical datasheet for the Mitsubishi Electric FS5VSH-3, an N-channel Power MOSFET intended for high-speed switching uses. The device features a TO-220S package and is suitable for motor control, lamp control, solenoid control, and DC-DC converters.
The datasheet provides maximum ratings, electrical characteristics, and typical performance curves. Key specifications include a drain-source voltage of 150V, a continuous drain current of 5A (20A pulsed), and a maximum power dissipation of 30W at Tc = 25°C.
| Drain-source voltage (VDSS) | 150 V |
|---|---|
| Gate-source voltage (VGSS) | +/- 10 V |
| Drain current (ID) | 5 A |
| Maximum power dissipation (Pb) | 30 W |
| Channel temperature range (Tch) | -55 ~ +150 °C |
| Package type | TO-220S |
The device supports a maximum drain-source voltage of 150 V and a maximum power dissipation of 30 W.
The typical weight of the FS5VSH-3 Power MOSFET is 1.2 g.
