FS5KM-6 is a Nch power MOSFET produced by Mitsubishi Electric. Its maximum drain-source voltage is 300V, maximum drain-source current is 5A, maximum on-resistance is 1.6Ω, and maximum power dissipation is 30W. The working temperature range is -55°C~+150°C.

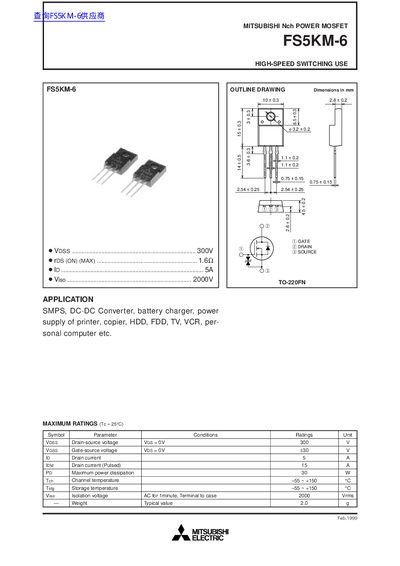

This document is a technical datasheet for the Mitsubishi Electric FS5KM-6, an N-channel Power MOSFET intended for high-speed switching uses. The device features a TO-220FN package and is rated for a maximum drain-source voltage of 300V and a continuous drain current of 5A.
| Drain-source voltage (VDS) | 300 V |
|---|---|
| Gate-source voltage (VGs) | +30 V |
| Drain current (ID) | 5 A |
| Maximum power dissipation (Pb) | 30 W |
| Channel temperature range | -55 ~ +150 °C |
| Package type | TO-220FN |
It is suitable for SMPS, DC-DC converters, battery chargers, and power supplies for printers, copiers, HDDs, FDDs, TVs, VCRs, and personal computers.
The continuous drain current rating is 5 A.
