FS5VS-5 is a Nch power MOSFET produced by MITSUBISHI. The rated voltage is 250V, the maximum current is 5A, and the switching speed is fast. It is suitable for SMPS, DC-DC converters, battery chargers, printers, copiers, HDD, FDD, TV, VCR, personal computers, etc.

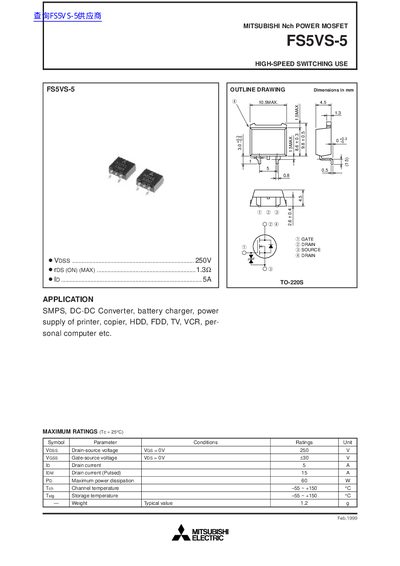

This document is a technical datasheet for the Mitsubishi Electric FS5VS-5 Nch Power MOSFET. It specifies that the device is designed for high-speed switching applications such as SMPS, DC-DC converters, battery chargers, and power supplies for printers, copiers, HDDs, FDDs, TVs, VCRs, and personal computers.
The datasheet provides maximum ratings including a drain-source voltage of 250V and a continuous drain current of 5A. It also lists detailed electrical characteristics such as gate-source threshold voltage, on-state resistance, capacitance values, and switching times under specific test conditions.
| Drain current (ID) | 5 A |
|---|---|
| Maximum power dissipation (Pd) | 60 W |
| Channel temperature range | -55 ~ +150 °C |
| Input capacitance (Ciss) | Typ. 270 pF |
It is used in SMPS, DC-DC converters, battery chargers, and power supplies for printers, copiers, HDDs, FDDs, TVs, VCRs, and personal computers.
The maximum drain-source voltage rating is 250V.
