FS5UM-9 is a Nch POWER MOSFET produced by MITSUBISHI. Its maximum drain-source voltage is 450V, maximum drain current is 5A, maximum working temperature is 150℃, and maximum storage temperature is -55℃.

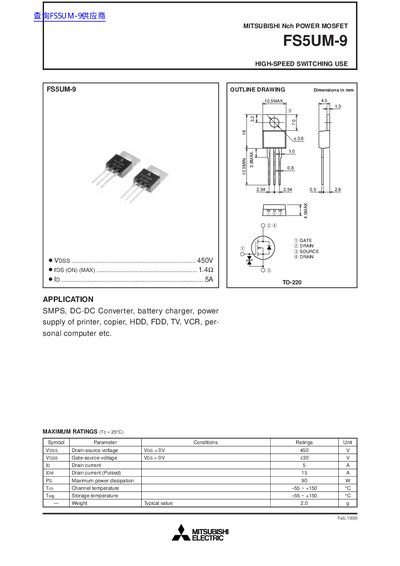

This document is a technical datasheet for the Mitsubishi Electric FS5UM-9, an Nch Power MOSFET intended for high-speed switching use. The device features a TO-220 package and is rated for a maximum drain-source voltage of 450V and a continuous drain current of 5A.
| Drain-source voltage (VDS) | 450 V |
|---|---|
| Gate-source voltage (VGSS) | +30 V |
| Drain current (ID) | 5 A |
| Maximum power dissipation (Pd) | 90 W |
| Package type | TO-220 |
The maximum power dissipation is 90 W.
The channel temperature ranges from -55 to +150 °C.
