This document describes the features and characteristics of MITSUBISHI Nch POWER MOSFET FS5VS-9. The product is suitable for high-speed switching power supplies, DC-DC converters, battery chargers, printers, copiers, hard disk drives, floppy disk drives, televisions, VCRs, personal computers, and other power supplies.

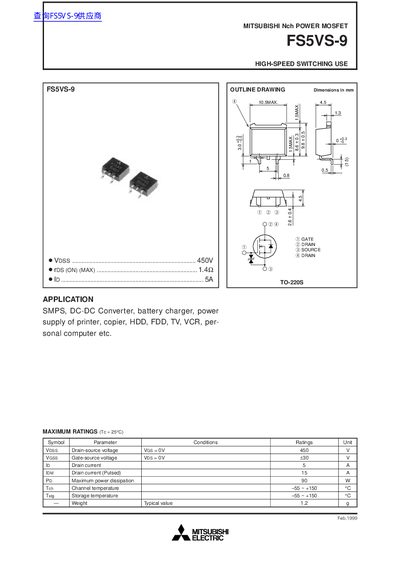

This document is a technical datasheet for the Mitsubishi FS5VS-9 Nch Power MOSFET. It provides comprehensive data on maximum ratings, including drain-source voltage of 450V and continuous drain current of 5A. The device is designed for high-speed switching applications such as MPS, DC-DC converters, and battery chargers. This manual is written in Chinese.
| Drain-source voltage (VDS) | 450 V |
|---|
The device has a maximum drain-source breakdown voltage of 450 V.
It is designed for use in SMPS, DC-DC converters, battery chargers, and various computer peripherals.
The maximum power dissipation is rated at 90 W when the case temperature is 25 °C.
