FS5UM-6 is a Nch power MOSFET produced by Mitsubishi Electric. Its maximum drain-source voltage is 300V, maximum drain-source resistance is 1.6 ohms, maximum drain-source current is 5A, and maximum power dissipation is 60W. Its operating temperature range is -55 to +150 degrees.

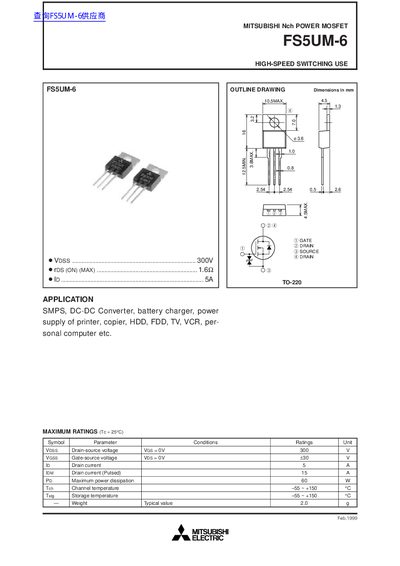

This document is a technical datasheet for the Mitsubishi Electric FS5UM-6, an N-channel Power MOSFET designed for high-speed switching applications. The device features a TO-220 package and is suitable for use in SMPS, DC-DC converters, battery chargers, and power supplies for various electronic equipment.
| Drain current continuous (ID) | 5 A |
|---|---|
| Drain current pulsed (IDM) | 15 A |
| Maximum power dissipation (Pd) | 60 W |
| Package type | TO-220 |
The maximum power dissipation for this device is rated at 60 W.
The channel temperature must be between -55°C and +150°C.
The typical weight of the FS5UM-6 MOSFET is 2.0 g.
