FS5VS-16A is a high voltage power MOSFET produced by Mitsubishi Electric. Its maximum on-resistance is 2.3 ohms, its maximum drain-source voltage is 800V, and its rated current is 5 amps.

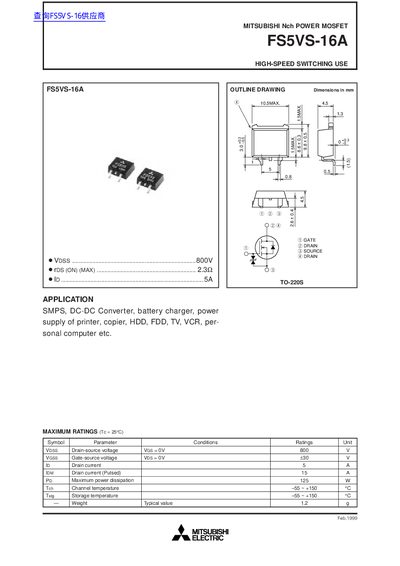

This document is a technical datasheet for the Mitsubishi Electric FS5VS-16A, an Nch power MOSFET designed for high-speed switching applications. The device features a TO-220S package and is rated for a maximum drain-source voltage of 800V.
| Drain-source voltage | 800 V |
|---|---|
| Gate-source voltage | +30 V |
| Drain current | 5 A |
| Maximum power dissipation | 125 W |
| Channel temperature range | -55 ~ +150 °C |
| Drain-source on-state resistance | 2.30 Ω (Max) |
| Input capacitance | 1050 pF |
The channel temperature ranges from -55 to +150 °C.
Yes, the document explicitly states it is for 'HIGH-SPEED SWITCHING USE'.
It is used in SMPS, DC-DC converters, battery chargers, and power supplies for printers and computers.
