FS5VSH-2 is a high-voltage, high-frequency switching N-channel MOSFET from Mitsubishi. Its maximum working voltage is 100V, maximum drain current is 5A, gate drive voltage is 2.5V, and switching speed is fast. It has an integrated fast recovery diode and is suitable for applications such as motor control, lamp control, and relay control.

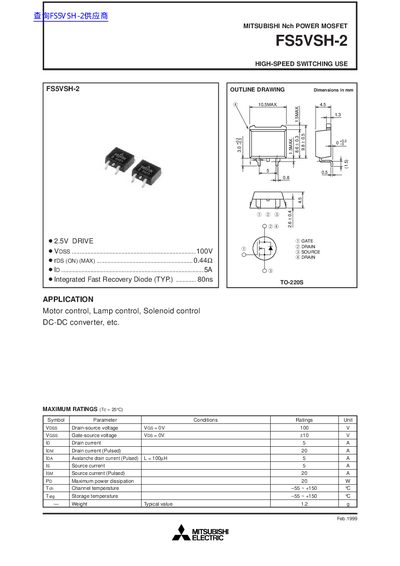

This document is a technical datasheet for the Mitsubishi Electric FS5VSH-2, an N-channel Power MOSFET intended for high-speed switching use. The device features a TO-220S package and is rated for a maximum drain-source voltage of 100 V and a continuous drain current of 5 A.
| Drain-source voltage (VDS) | 100 V |
|---|---|
| Gate-source voltage (VGSS) | +/-10 V |
| Drain current (ID) | 5 A |
| Maximum power dissipation (Pb) | 20 W |
| Channel temperature range (Tch) | -55 ~ +150 °C |
| Package type | TO-220S |
The device supports a maximum drain-source voltage of 100 V and a maximum power dissipation of 20 W.
The typical weight of the FS5VSH-2 Power MOSFET is 1.2 g.
