MITSUBISHI FS5KMH-2 handbook

The FS5KMH-2 is a Mitsubishi Nch power MOSFET, mainly used for motor control, lamp control, relay control, etc.

Brand: Mitsubishi
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 49 KB
Published: 07 June, 2012
Updated: 30 September, 2023
MD5 checksum: D5559871CF30E148B796B02BF72B7C79
PDF: MITSUBISHI FS5KMH-2 handbook PDF

About this manual

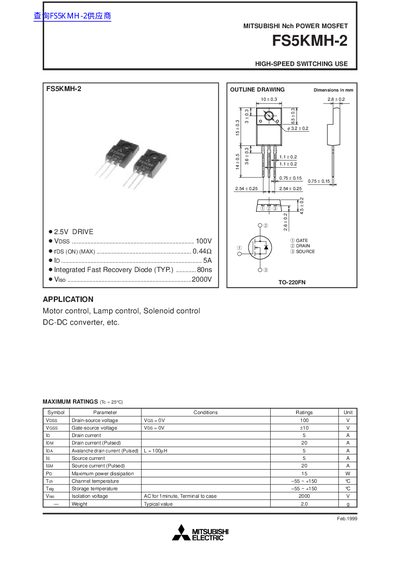

This document is a technical datasheet for the Mitsubishi Electric FSS5KMH-2, an N-channel Power MOSFET intended for high-speed switching use. The device features a TO-220FN package and is rated for a maximum drain-source voltage of 100V.

What's inside

Application
Maximum Ratings
Electrical Characteristics
Performance Curves
Switching Characteristics

Specifications

Drain-source voltage	100 V
Gate-source voltage	H10 Vv
Drain current	5 A
Maximum power dissipation	15 WwW
Channel temperature range	-55 ~ +150 °C

Frequently asked questions

What applications is the FSS5KMH-2 MOSFET designed for?

The device is intended for motor control, lamp control, solenoid control, and DC-DC converters.

What is the maximum power dissipation rating at 25°C?

The maximum power dissipation is rated at 15 W when the channel temperature is 25°C.

How much does a single FSS5KMH-2 unit weigh?

The typical weight of the component is 2.0 g.
