fs5sm-14a is a nch power mosfet produced by mitsubishi, which has the characteristics of high switching speed and low on-resistance. it is used in smps, dc-dc converter, battery charger, printer, copier, hdd, fdd, tv, vcr, personal computer etc.

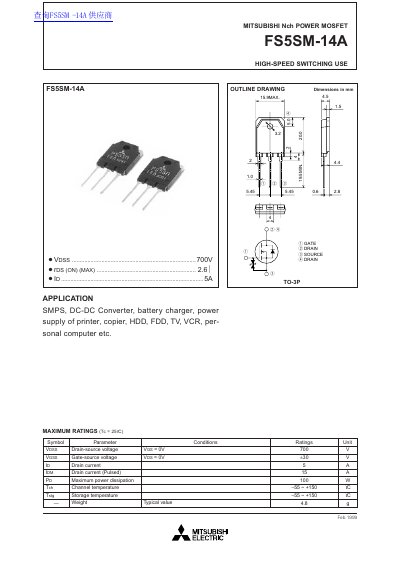

This document is a technical datasheet for the Mitsubishi FS5SM-14A, an N-channel Power MOSFET designed for high-speed switching applications. The device features a drain-source voltage rating of 700V and a typical on-state resistance of 2.6Ω.
The datasheet provides comprehensive electrical characteristics including breakdown voltages, leakage currents, threshold voltage, capacitance values, and thermal resistance. It also includes performance curves for power dissipation derating, safe operating areas, and switching times under various test conditions.
| Drain-source voltage (VDS) | 700 V |
|---|---|
| Package type | TO-3P |
It is suitable for SMPS, DC-DC converters, battery chargers, and power supplies for printers, copiers, HDDs, FDDs, TVs, VCRs, and personal computers.
The typical drain-source on-state resistance (rDS(ON)) is 2.6Ω.
