This is a high voltage low resistance Nch power MOSFET, with a maximum working voltage of 800V, a maximum current of 5A, and a maximum power dissipation of 15W. The working temperature is -55℃ to +150℃.

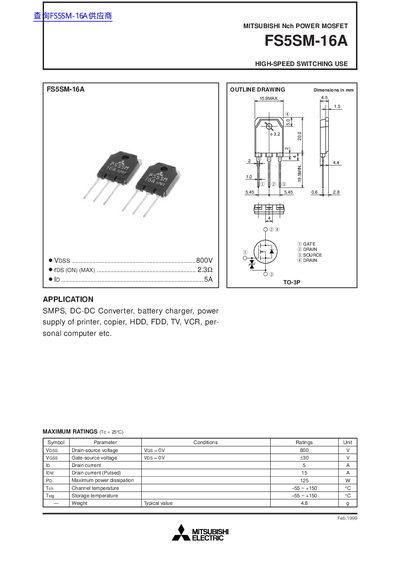

This document is a technical datasheet for the Mitsubishi Electric FS5SM-16A, an N-channel Power MOSFET intended for high-speed switching uses. The device features a TO-3P package and is rated for a maximum drain-source voltage of 800V with a continuous drain current of 5A.
| Package Type | TO-3P |
|---|---|
| Drain-source voltage | 800 V |
| Gate-source voltage | +30 V |
| Drain current | 5 A |
| Maximum power dissipation | 125 W |
| Channel temperature range | -55 ~ +150 °C |
It is suitable for SMPS, DC-DC converters, battery chargers, and power supplies for printers, copiers, HDDs, FDDs, TVs, VCRs, and personal computers.
The continuous drain current rating is 5A.
