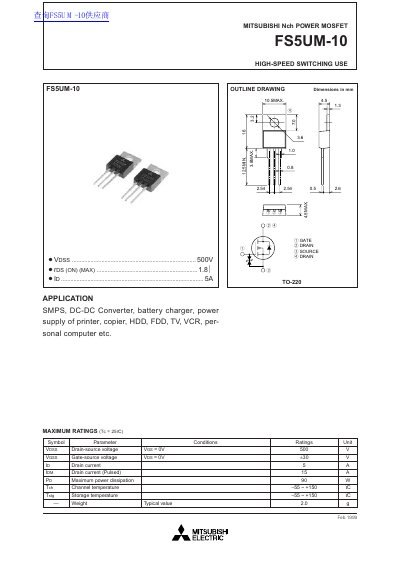

FS5UM-10 is a Nch power MOSFET manufactured by Mitsubishi Electric. It has a maximum drain-source voltage of 500V, a 1.8 ohm on-resistance, and a maximum drain current of 5A.
The document is a technical datasheet for the Mitsubishi FS5UM-10 N-channel Power MOSFET. It specifies that the device is designed for high-speed switching applications such as SMPS, DC-DC converters, battery chargers, and power supplies for printers, copiers, HDDs, FDDs, TVs, VCRs, and personal computers.
The datasheet details maximum ratings including a drain-source voltage of 500V and a continuous drain current of 5A. It also provides comprehensive electrical characteristics such as on-state resistance (1.8Ω max), input/output capacitance values, and switching times. Additionally, it includes performance curves for power dissipation derating, safe operating area, output characteristics, transfer characteristics, and transient thermal impedance. This manual is written in Chinese.
| Drain-source voltage (VDS) | 500 V |
|---|---|
| Maximum power dissipation (PD) | 1.8 W |
The maximum drain-source voltage (V_DSS) is rated at 500 V.
This device is intended for high-speed switching uses such as SMPS, DC-DC converters, and battery chargers.
