This document describes the applications and electrical characteristics of MITSUBISHI Nch POWER MOSFET FS5KM-5 for high-speed switching. It is suitable for applications such as SMPS, DC-DC converters, battery chargers, printers, copiers, HDD, FDD, TV, VCR, personal computers, etc.

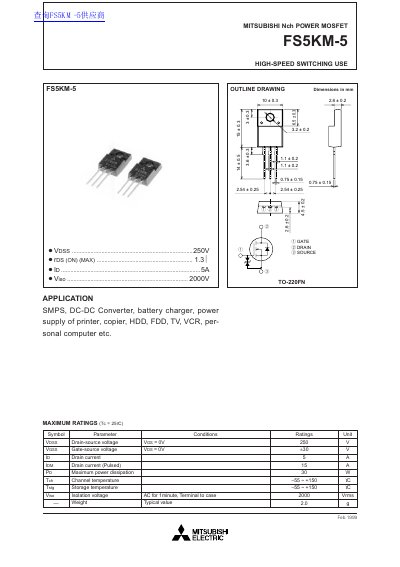

This document is a technical datasheet for the Mitsubishi FS5KM-5 Nch Power MOSFET. It provides comprehensive data on the device's maximum ratings, including drain-source voltage of 250V and continuous drain current of 5A.
The text includes detailed electrical characteristics such as threshold voltage, on-state resistance, capacitance values, and switching times under specific test conditions. Additionally, it features graphical representations of power dissipation derating curves, safe operating areas, and output characteristics.
| Drain-source voltage (VDS) | 250V |
|---|---|
| Isolation voltage (Viso) | 2000V |
The maximum drain-source voltage (VDS) is rated at 250V.
