FS5AS-2 is a high-voltage MOSFET device produced by Mitsubishi, with high switching speed and low on-resistance, suitable for various motor control, lamp control, solenoid control and other applications.

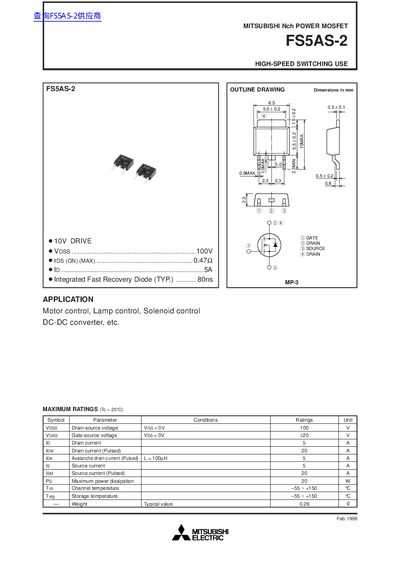

This document is a technical datasheet for the Mitsubishi Electric FS5AS-2 Nch Power MOSFET. It outlines the device's physical dimensions and intended applications, including motor control, lamp control, solenoid control, and DC-DC converters.
The datasheet provides comprehensive electrical characteristics at a channel temperature of 25°C, listing parameters such as drain-source breakdown voltage (100 V), maximum drain current (5 A), and on-state resistance. It also includes performance curves for power dissipation derating, safe operating areas, capacitance, switching times, and thermal impedance.
| Drain-source voltage (VDS) | 100 V |
|---|---|
| Gate-source voltage (VGSS) | +20 V |
| Drain current (ID) | 5 A |
| Maximum power dissipation (Pb) | 20 W |
| Channel temperature range | -55 ~ +150 °C |
This device is intended for motor control, lamp control, solenoid control, and DC-DC converters.
The maximum power dissipation is 20 W when the channel temperature is 25°C.
The channel operates between -55°C and +150°C, with the same range for storage.
