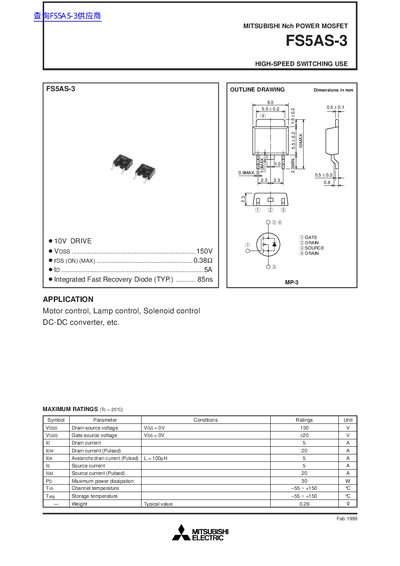

This document introduces the high-speed switching product FS5AS-3 of MITSUBISHI Nch POWER MOSFET, which was manufactured in February 1999. This product is suitable for applications such as motor control, lamp control, solenoid control, and DC-DC converters. The document provides information on the outline drawing, dimensions, maximum ratings, and output characteristics of the product.
This document is a technical datasheet for the Mitsubishi Electric FS5AS-3 Nch Power MOSFET. It specifies that the device is designed for high-speed switching uses such as motor control, lamp control, solenoid control, and DC-DC converters.
The datasheet provides comprehensive electrical characteristics including maximum ratings (e.g., 150V drain-source voltage, 5A continuous current), threshold voltages, capacitance values, and thermal resistance. It also includes typical performance curves for on-state voltage, switching times, and transient thermal impedance.
| Gate-source voltage (VGSS) | +20 V |
|---|---|
| Drain current (ID) | 5 A |
| Maximum power dissipation (Pb) | 30 W |
| Channel temperature range (Tch) | -55 ~ +150 °C |
| Drain-source on-state resistance (rDS(on)) | Typ. 0.38 Ω |
The device is intended for motor control, lamp control, solenoid control, and DC-DC converters.
The typical drain-source on-state resistance (rDS(on)) is 0.38 Ω when ID = 2A and VGS = 10V.
