The document describes the features and characteristics of the MITSUBISHI Nch POWER MOSFET FS5ASH-06, which is primarily used for high-speed switching applications such as motor control, lamp control, solenoid control, and DC-DC converters. It has high voltage and current capacity, as well as an integrated fast recovery diode design.

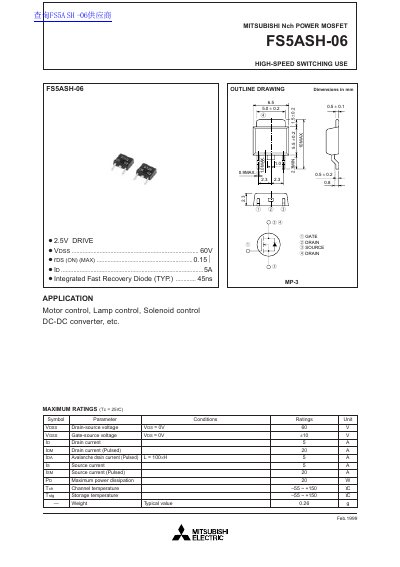

This document is a technical datasheet for the Mitsubishi FS5ASH-06 Nch power MOSFET. It outlines the device's physical dimensions and intended high-speed switching applications, including motor control, lamp control, solenoid control, and DC-DC converters.
The datasheet provides comprehensive electrical characteristics, maximum ratings, and performance curves at a channel temperature of 25°C. Key specifications include a drain-source breakdown voltage of 60V, a maximum drain current of 5A, and an integrated fast recovery diode with a typical reverse recovery time of 45ns.
| Drain-source breakdown voltage (VDS) | 60 V |
|---|---|
| Integrated Fast Recovery Diode reverse recovery time | 45 ns (Typ.) |
The device is suitable for high-speed switching uses such as motor control, lamp control, solenoid control, and DC-DC converters.
This device is designed for use in motor control, lamp control, solenoid control, and DC-DC converters.
The maximum drain-source voltage is rated at 60 V under specified conditions.
