FS50SMJ-3 is a Nch power MOSFET produced by Mitsubishi. Its rated voltage is 150V and the maximum current is 50A. It integrates a fast recovery diode and has a fast switching speed. It is suitable for applications such as motor control, lamp control, solenoid control, etc.

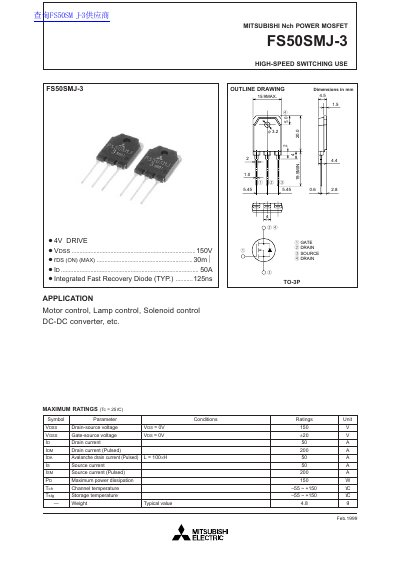

This document is a technical datasheet for the Mitsubishi FS50SMJ-3, an N-channel power MOSFET designed specifically for high-speed switching applications. The device features a 150V drain-source breakdown voltage and is suitable for use in motor control, lamp control, solenoid control, and DC-DC converters.
The datasheet provides comprehensive electrical characteristics including maximum ratings such as a 50A drain current and 200W power dissipation. It also includes detailed performance curves for parameters like on-state resistance, switching times, capacitance versus voltage, and thermal impedance.
| Drain-source breakdown voltage (VDS) | 150V |
|---|---|
| Integrated Fast Recovery Diode time | 125ns (Typ.) |
This device is designed for high-speed switching uses such as motor control, lamp control, solenoid control, and DC-DC converters.
The maximum drain-source voltage rating for this MOSFET is 150V.
