FS5KM-14A is a Nch power MOSFET produced by Mitsubishi. Its maximum operating voltage is 700V, maximum on-resistance is 2.6 ohms, and maximum current is 5 amps.

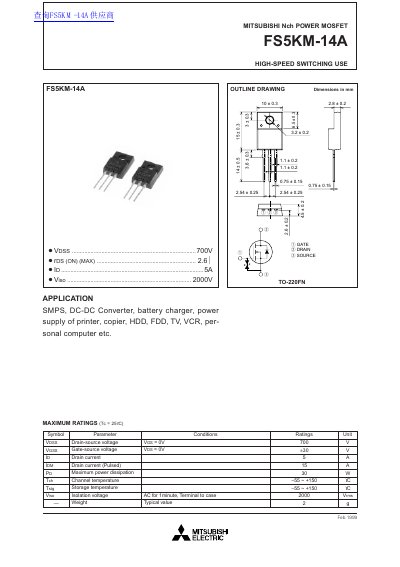

This document is a technical datasheet for the Mitsubishi FS5KM-14A, an Nch Power MOSFET designed for high-speed switching applications. It provides comprehensive data on maximum ratings, including drain-source voltage of 700V and drain current of 5A.
The text includes detailed electrical characteristics such as input capacitance, output capacitance, and switching times under specific test conditions (Tch = 25°C). Additionally, the document features performance curves illustrating power dissipation derating, safe operating areas, and on-state resistance versus temperature.
| Drain-source voltage (VDS) | 700 V |
|---|---|
| Maximum power dissipation (PD) | 30 W |
| Channel temperature range | -55 ~ +150 °C |
The device is suitable for SMPS, DC-DC converters, battery chargers, and power supplies for printers, copiers, HDDs, FDDs, TVs, VCRs, and personal computers.
The typical value for the drain-source on-state resistance (rDS(ON)) is 2.6 Ω.
