FS5KM-10 is a high-voltage, high-frequency MOSFET with a maximum working voltage of 500V, maximum current of 5A, and maximum power dissipation of 35W. It can be used in SMPS, DC-DC converter, battery charger and other power devices

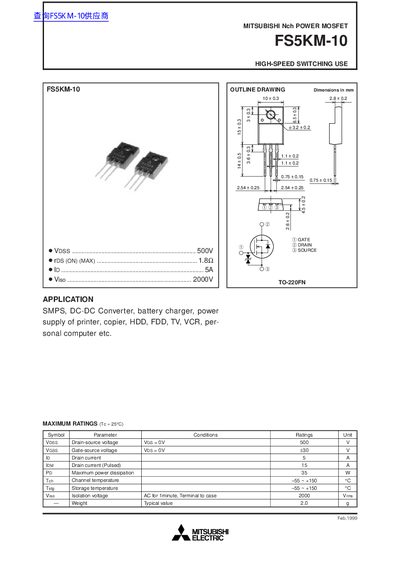

This document provides technical specifications and performance curves for the Mitsubishi Electric FS5KM-10, an Nch Power MOSFET intended for high-speed switching use. The device is packaged in a TO-220FN case and features a maximum drain-source voltage of 500V.
| Gate-source voltage (VGSS) | +30 V |
|---|---|
| Drain current (ID) | 5 A |
| Maximum power dissipation (Pd) | 35 W |
| Channel temperature range | -55 ~ +150 °C |
| Package type | TO-220FN |
The device supports a maximum drain-source voltage of 500 V and a maximum power dissipation of 35 W.
The typical weight of the FS5KM-10 power MOSFET is 2.0 g.
The turn-on delay time is up to 15 ns, and the rise time is up to 30 ns.
