FS50VSJ-06 is a Nch power MOSFET from MITSUBISHI. Its maximum on-resistance is 20mΩ, maximum operating voltage is 60V, maximum operating current is 50A, and typical switching speed is 70ns.

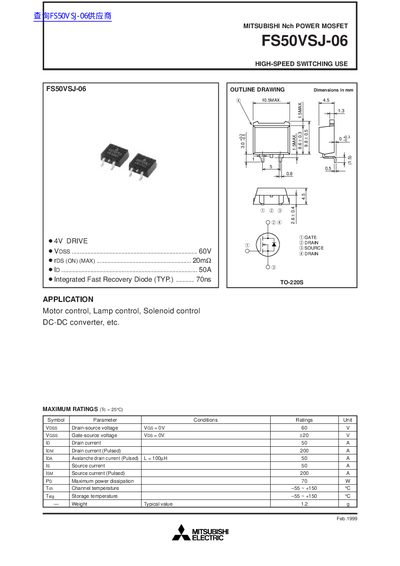

This document is a technical datasheet for the Mitsubishi Electric FS50VSJ-06, an Nch Power MOSFET intended for high-speed switching use. The device features a TO-220S package and is suitable for motor control, lamp control, solenoid control, and DC-DC converter applications.
The datasheet provides maximum ratings, electrical characteristics, and typical performance curves. Key specifications include a drain-source voltage rating of 60V, a continuous drain current of 50A, and a pulsed drain current capability of 200A.
| Drain current (ID) | 50 A |
|---|---|
| Pulsed drain current (IDM) | 200 A |
| Maximum power dissipation (Pb) | 70 W |
| Channel temperature range | -55 ~ +150 °C |
| Package type | TO-220S |
The device is intended for motor control, lamp control, solenoid control, and DC-DC converters.
The typical input capacitance (Ciss) at VDS=10V and VGS=0V is approximately 3000 pF.
