This document describes the features and characteristics of the MITSUBISHI Nch POWER MOSFET FS50VS-06, including its high-speed switching use applications, electrical characteristics, and parameters.

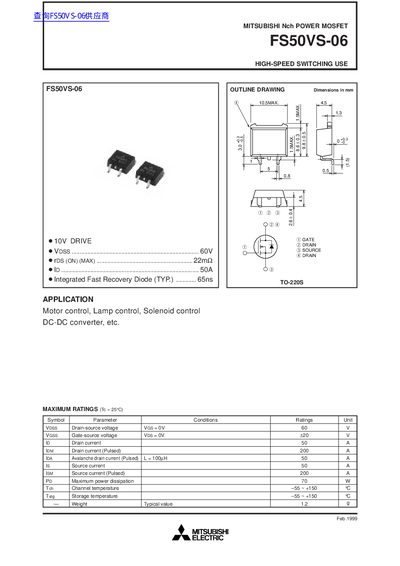

This document is a technical datasheet for the Mitsubishi Electric FS50VS-06 Nch Power MOSFET. It outlines the device's physical dimensions (TO-220S package) and intended applications, including motor control, lamp control, solenoid control, and DC-DC converters.
The document provides comprehensive electrical characteristics and performance curves for the component. Key specifications include a maximum drain-source voltage of 60V, a continuous drain current of 50A, and a pulsed drain current capability of 200A at Tc = 25°C.
| Drain-source voltage (VDSS) | 60 V |
|---|---|
| Gate-source voltage (VGSS) | +20 V |
| Drain current (ID) | 50 A |
| Pulsed Drain current (IDM) | 200 A |
| Maximum power dissipation (Pb) | 70 W |
| Channel temperature range (Tch) | -55 ~ +150 °C |
The device is intended for motor control, lamp control, solenoid control, and DC-DC converters.
The maximum power dissipation is rated at 70 W when the case temperature is 25°C.
The device operates from -55 to +150 °C and can be stored in the same range.
