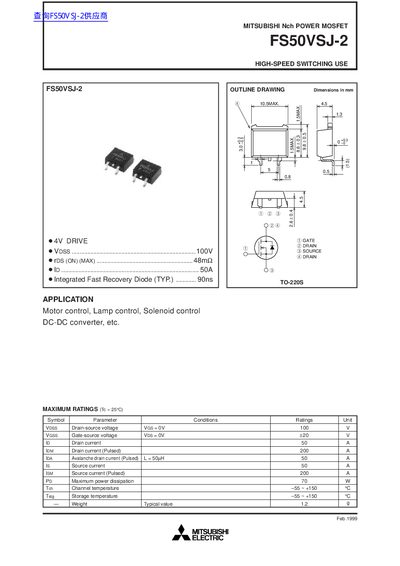

This document introduces the application of MITSUBISHI Nch POWER MOSFET FS50VSJ-2 in high-speed switching, including motor control, lamp control, solenoid control, and DC-DC converter, etc. It provides the dimensions, maximum ratings, and electrical characteristics parameters of the product.
This document is a technical datasheet for the Mitsubishi Electric FS50VSJ-2 Nch Power MOSFET. It describes the device as intended for high-speed switching applications such as motor control, lamp control, solenoid control, and DC-DC converters.
The datasheet provides comprehensive electrical characteristics including maximum ratings like a drain-source voltage of 100V and a pulsed drain current of 200A. It also includes typical performance curves for capacitance, on-state resistance, switching times, and thermal impedance.
| Drain-source voltage (VDSS) | 100 V |
|---|---|
| Gate-source voltage (VGss) | +20 V |
| Drain current (ID) | 50 A |
| Pulsed Drain current (IDM) | 200 A |
| Maximum power dissipation (Pb) | 70 W |
| Channel temperature range (Tch) | -55 ~ +150 °C |
| Turn-on delay time (td(on)) | 22 ns (Typ) |
The device is suitable for motor control, lamp control, solenoid control, and DC-DC converters.
The maximum pulsed drain current (IDM) rating is 200 A.
The typical turn-off delay time (ta(off)) is 270 ns.
