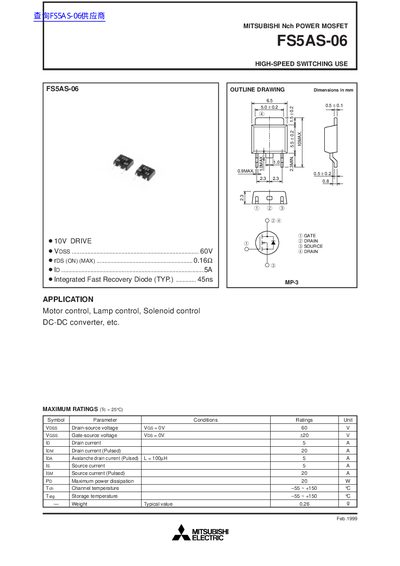

The document describes the features and characteristics of the MITSUBISHI Nch POWER MOSFET FS5AS-06, which is suitable for high-speed switching applications such as motor control, lamp control, solenoid control, and DC-DC converters.
This document is a technical datasheet for the Mitsubishi Electric FS5AS-06 Nch Power MOSFET, designed specifically for high-speed switching applications. The device features a drain-source voltage rating of 60V and a continuous drain current of 5A.
The datasheet provides comprehensive electrical characteristics including input capacitance (280 pF typical), output capacitance (120 pF typical), and thermal resistance (6.25 °C/W). It also includes performance curves for power dissipation, safe operating area, and switching characteristics under various temperature conditions.
| Gate-source voltage (VGSS) | +20 V |
|---|---|
| Drain current (ID) | 5 A |
| Maximum power dissipation (Pb) | 20 W |
| Channel temperature range (Tch) | -55 ~ +150 °C |
| Input capacitance (Ciss) | 280 pF (Typical) |
| Output capacitance (Coss) | 120 pF (Typical) |
| Thermal resistance (Rth ch-c) | 6.25 °C/W |
This device is intended for motor control, lamp control, solenoid control, and DC-DC converters.
The maximum power dissipation is 20 W when the channel temperature is 25°C.
The drain-source breakdown voltage is rated at 60 V when the gate-source voltage is 0 V.
