The FS50UMJ-3 is a high-performance Nch power MOSFET from Mitsubishi. It has a maximum on-resistance of 30mΩ, a rated current of 50A, and a maximum turn-off time of 1.5ns. This device is suitable for applications such as motor control, lamp control, and relay control.

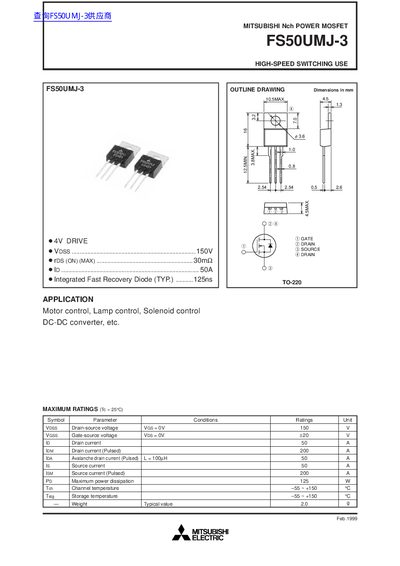

This document is a technical datasheet for the Mitsubishi Electric FS50UMJ-3, an N-channel Power MOSFET intended for high-speed switching uses. The device features a TO-220 package and is rated for a maximum drain-source voltage of 150V and a continuous drain current of 50A.
| Drain-source voltage (VDSS) | 150 V |
|---|---|
| Gate-source voltage (VGSS) | +20 V |
| Drain current (ID) | 50 A |
| Maximum power dissipation (Pb) | 125 W |
| Channel temperature range (Tch) | -55 ~ +150 °C |
The typical weight for the FS50UMJ-3 is 2.0 g.
