FS5KM-16A is a high-performance Nch power MOSFET from Mitsubishi Electric. It has a maximum voltage of 800V, a typical on-resistance of 2.3Ω and a maximum current of 5A.

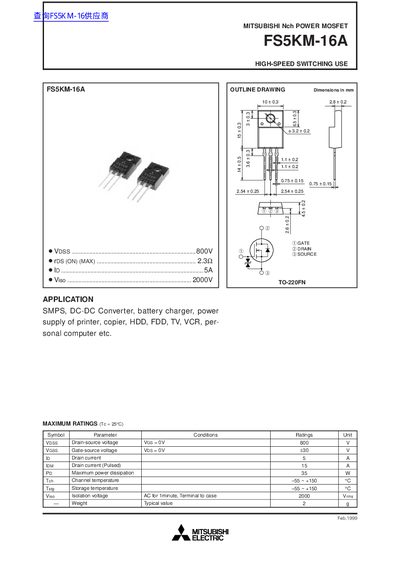

This document is a technical datasheet for the Mitsubishi FS5KM-16A N-channel Power MOSFET. It is designed specifically for high-speed switching applications such as SMPS, DC-DC converters, battery chargers, and power supplies for printers, copiers, HDDs, FDDs, TVs, VCRs, and personal computers.
The datasheet provides comprehensive electrical characteristics including maximum ratings, output characteristics, switching times, capacitance values, and thermal resistance. It includes performance curves illustrating drain-source breakdown voltage, on-state resistance versus temperature, gate charge, and transient thermal impedance.
| Drain-source voltage (VDS) | 800 V |
|---|---|
| Isolation voltage (Viso) | 2000 V |
| Drain-source on-state resistance (rDS(ON)) | 2.3 Ω |
The device has a maximum drain-source breakdown voltage of 800V.
