FS50UMJ-2 is a Nch power MOSFET produced by Mitsubishi Electric. Its maximum working voltage is 100V and its maximum working current is 50A. The rated on-state resistance is 48mΩ. FS50UMJ-2 has a high speed switching characteristic and is suitable for motor control, lamp control, relay control and other applications.

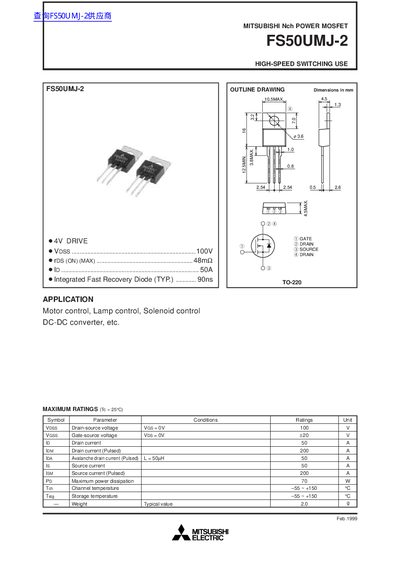

This document is a technical datasheet for the Mitsubishi FS50UMJ-2 N-channel Power MOSFET. The device is specifically engineered for high-speed switching use cases, including motor control, lamp control, solenoid control, and DC-DC converters.
The datasheet provides comprehensive electrical characteristics, maximum ratings, performance curves, and outline drawings. Key specifications include a drain-source voltage of 100V, a continuous drain current of 50A, and an integrated fast recovery diode with a typical reverse recovery time of 90ns.
| Drain-source voltage (VDS) | 100 V |
|---|---|
| Integrated Fast Recovery Diode time | 90 ns |
| Drain-source on-state resistance | 48 mΩ |
It is designed for high-speed switching applications such as motor control, lamp control, solenoid control, and DC-DC converters.
This device is intended for high-speed switching uses such as motor control, lamp control, solenoid control, and DC-DC converters.
