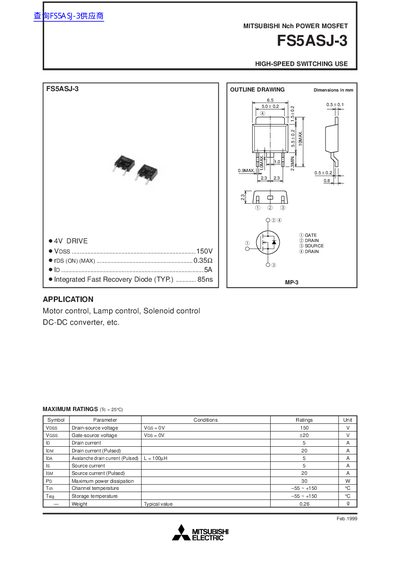

This document provides information on the outline dimensions, maximum ratings, and electrical characteristics of the Mitsubishi Nch Power MOSFET FS5ASJ-3. The product is suitable for high-speed switching applications such as motor control, lamp control, solenoid control, and DC-DC converters.
This document is a technical datasheet for the Mitsubishi Electric FS5ASJ-3 Nch Power MOSFET, designed for high-speed switching applications. The device features a drain-source voltage rating of 150V and a continuous drain current of 5A.
The datasheet provides comprehensive electrical characteristics including on-state resistance, capacitance values, and switching times under specific test conditions (Tch = 25°C). It also includes performance curves for power dissipation derating, safe operating areas, and transient thermal impedance.
| Drain-source voltage (VDSS) | 150 V |
|---|---|
| Gate-source voltage (VGss) | +20 V |
| Drain current (ID) | 5 A |
| Maximum power dissipation (Pb) | 30 W |
| Channel temperature range (Teh) | -55 ~ +150 °C |
| Input capacitance (Ciss) | 800 pF |
The device is suitable for motor control, lamp control, solenoid control, and DC-DC converters.
The maximum pulsed drain current (IDM) rating is 20 A.
The electrical characteristics listed in the datasheet are measured at a channel temperature of 25°C.
