FS50UM-06 is a Nch power MOSFET produced by Mitsubishi Electric. It features high switching speed, low on-resistance and large current output. It is suitable for motor control, lamp control, relay control and other applications.

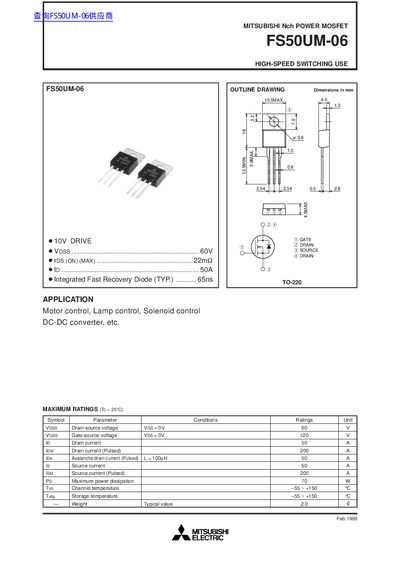

This document is a technical datasheet for the Mitsubishi Electric FS50UM-06, an Nch Power MOSFET intended for high-speed switching use. The device features a TO-220 package and is suitable for motor control, lamp control, solenoid control, and DC-DC converter applications.
The datasheet provides maximum ratings, electrical characteristics, and typical performance curves. Key specifications include a drain-source voltage of 60V, a continuous drain current of 50A, and a pulsed drain current capability of 200A.
| Package Type | TO-220 |
|---|---|
| Drain current (ID) | 50 A |
| Pulsed Drain current (IDM) | 200 A |
| Maximum power dissipation (Pb) | 70 W |
| Channel temperature range | -55 ~ +150 °C |
The device is designed for motor control, lamp control, solenoid control, and DC-DC converters.
The maximum pulsed drain current (IDM) rating is 200 A.
