FS50KM-06 is a Nch power MOSFET from Mitsubishi. Its features are 10V drive voltage, 60V maximum drain-source voltage, 50A maximum drain current, integrated fast recovery diode, 2000V isolation voltage.

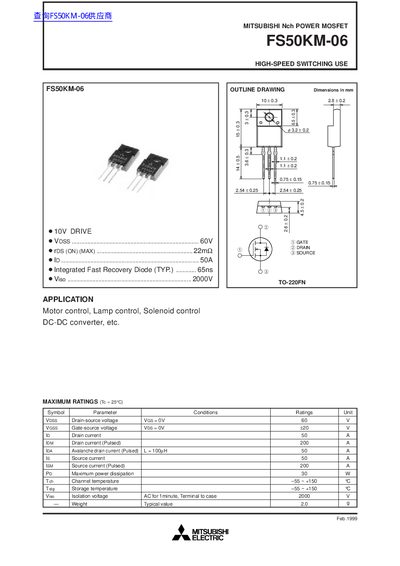

This document is a technical datasheet for the Mitsubishi Electric FS50KM-06, an Nch Power MOSFET intended for high-speed switching use. It specifies that the device operates with a 10V drive and includes maximum ratings such as a drain-source voltage of 60V and a pulsed drain current of 200A.
| Drain-source voltage (VDS) | 60 V |
|---|---|
| Gate-source voltage (VGSS) | +20 V |
| Drain current (ID) | 50 A |
| Pulsed Drain current (IDM) | 200 A |
| Maximum power dissipation (Pd) | 30 W |
| Channel temperature range | -55 ~ +150 °C |
This device is intended for motor control, lamp control, solenoid control, and DC-DC converters.
The maximum rated drain current is 50 A under specified conditions.
The maximum continuous power dissipation rating is 30 W.
