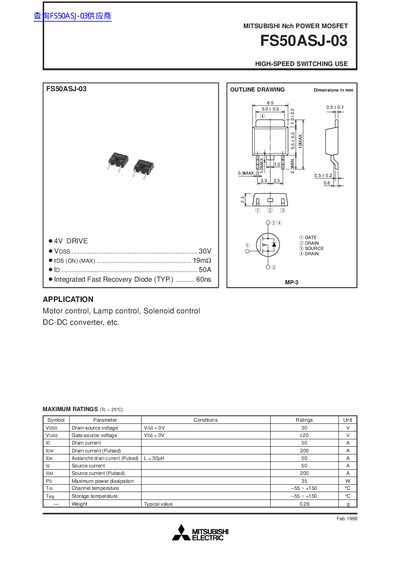

Mitsubishi Electric FS50ASJ-03 Nch Power MOSFET Datasheet

FS50ASJ-03 is a Nch power MOSFET produced by Mitsubishi. It has a maximum voltage of 30V and a maximum current of 50A. It has a high switching speed and is suitable for motor control, lamp control, and solenoid control applications.

Brand: Mitsubishi
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 45 KB
Published: 07 June, 2012
Updated: 30 September, 2023
MD5 checksum: B6A88D8351E7F9B466E563DD7FCC6419
PDF: Mitsubishi Electric FS50ASJ-03 Nch Power MOSFET Datasheet PDF

About this manual

This document is a technical datasheet for the Mitsubishi Electric FS50ASJ-03, an N-channel Power MOSFET designed specifically for high-speed switching applications. The device is suitable for use in motor control, lamp control, solenoid control, and DC-DC converters.

What's inside

Maximum Ratings
Electrical Characteristics
Performance Curves
Switching Time
Thermal Resistance

Specifications

Drain current	50 A
Maximum power dissipation	35 W
Channel temperature range	-55 ~ +150 °C

Frequently asked questions

What applications is this MOSFET designed for?

The device is intended for use in motor control, lamp control, solenoid control, and DC-DC converters.

What is the maximum power dissipation rating at 25°C?

The maximum power dissipation is rated at 35 W when the case temperature is 25°C.

How much does this component weigh?

The typical weight of the FS50ASJ-03 MOSFET is 0.26 g.
