This document is the MCC 312-12io1 MCD 312-12io1 product manual, which mainly introduces the features, characteristics, parameters, application scenarios and other information of the product.

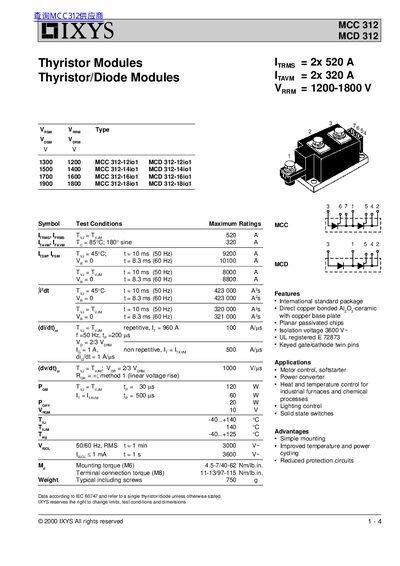

This document provides detailed specifications for the IXYS MCC 312 and MCD 312 Thyristor Modules. It covers maximum ratings such as RMS current (520 A) and surge current (9200 A), along with characteristic values like forward voltage drop and gate trigger currents under various test conditions.
| RMS Current (ITRMS) | 520 A |
|---|---|
| Surge Current (ITSM) | 9200 A |
| Repetitive Peak Off-State Voltage (VRRM) | 1200-1800 V |
| Thermal Resistance Junction-to-Case (RthJC) DC | 0.12 K/W per module |
| Isolation Voltage (VISOL) | 3000 V~ |
They are used in motor control, softstarters, power converters, heat and temperature control for industrial furnaces, lighting control, and solid state switches.
The maximum junction temperature (TVJM) is 140 °C.
